Spiral Cable Coil Cord "Industrial Duty" 4x0,25mm² Extended Length 3,5m
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h

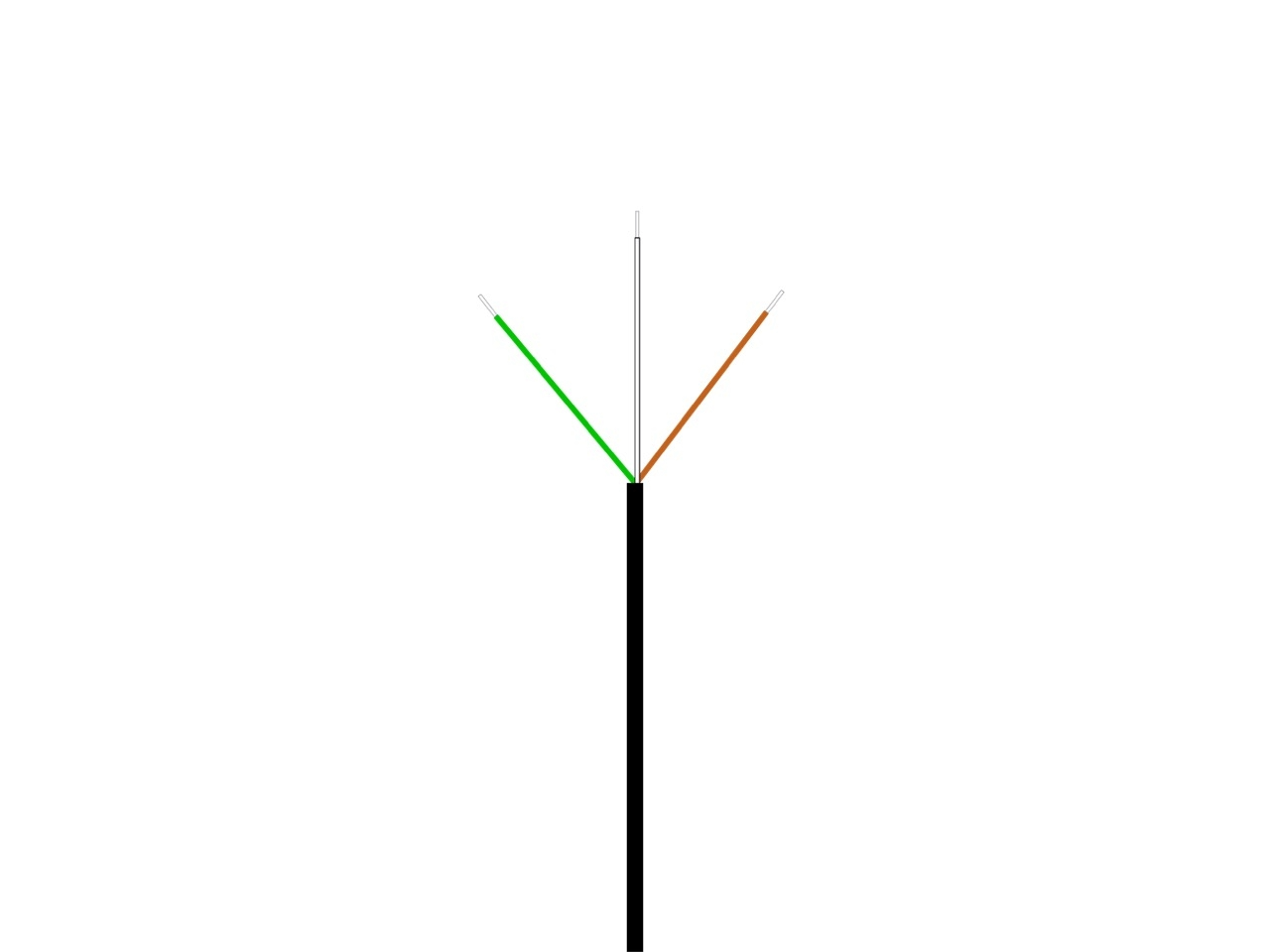

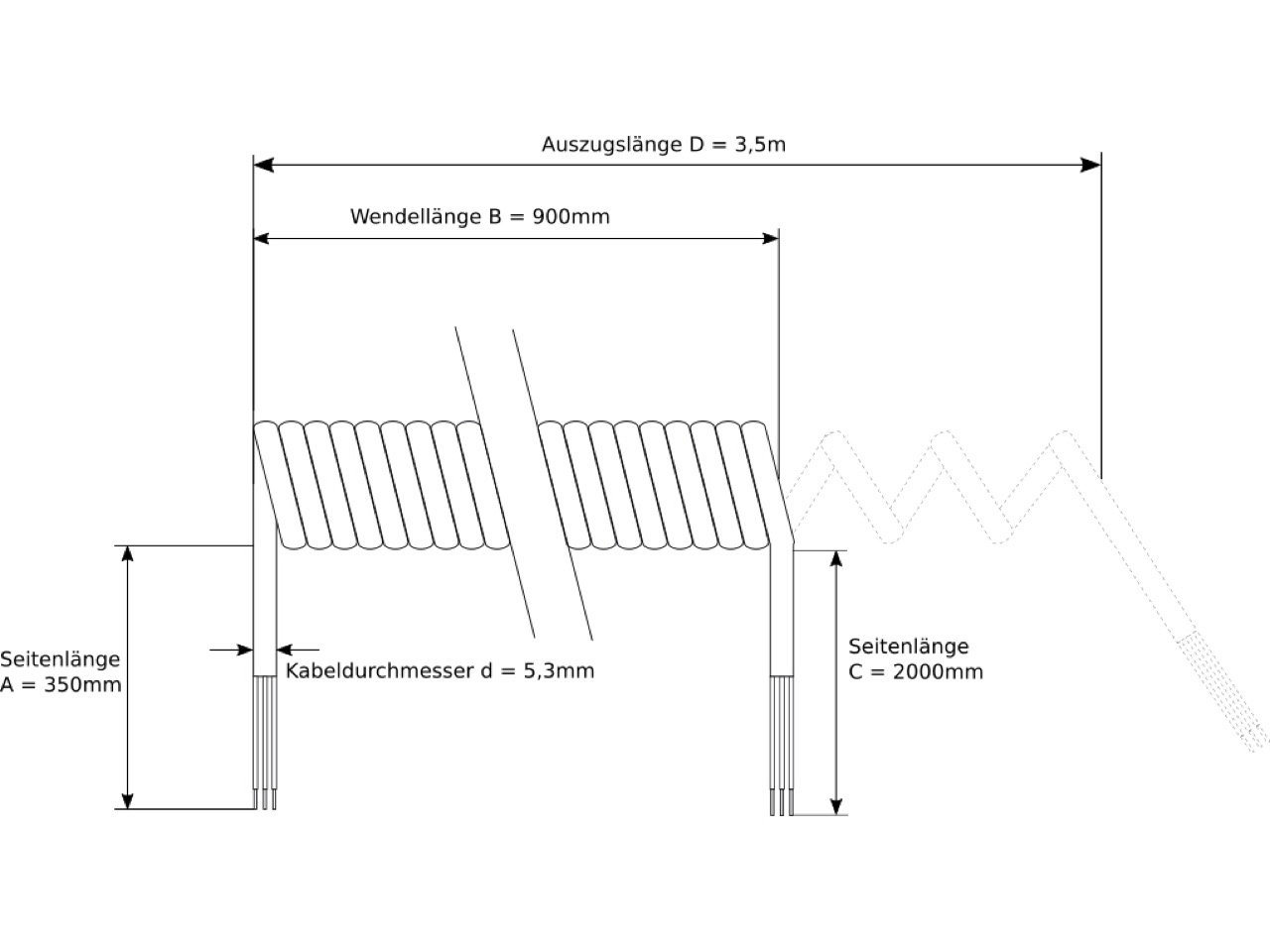

Coil cord for doors, black, cable configuration: fine-stranded 4x0,25mm², Lif9Y11Y, PP/ TPU Ether, dimensions: left end = 350mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5m
Description:
The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.
Properties:
- Due to the 900mm-long spiral block, the coil cable can be extended to a length of up to 3.5m
- The 4-core cable installation and a 0.25mm² conductor cross-section means the coil cord has enough strands for e.g. the safety edge and slack-rope switches.
- Can be installed universally on doors from various manufacturers
| Cable Setup: | 4 x 0.25 mm² |
|---|---|
| Extension Length: | 3500 mm |
| Länge Anschlußleitung (steuerungsseitig): | 2000 mm |
| Länge Anschlußleitung (torseitig): | 350 mm |
| Material: | TPU/TPU |
| Max. Operating Temperature: | +90 °C |
| Min. Operating Temperature: | -40 °C |
