FRABA VITECTOR OSE-S 6702 Optical Edge Sensors Transmitter Tx 10,5m/Receiver Rx 0,5m PVC-Cable Status-LED
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "FRABA VITECTOR OSE-S 6702 Optical Edge Sensors Transmitter Tx 10,5m/Receiver Rx 0,5m PVC-Cable Status-LED"

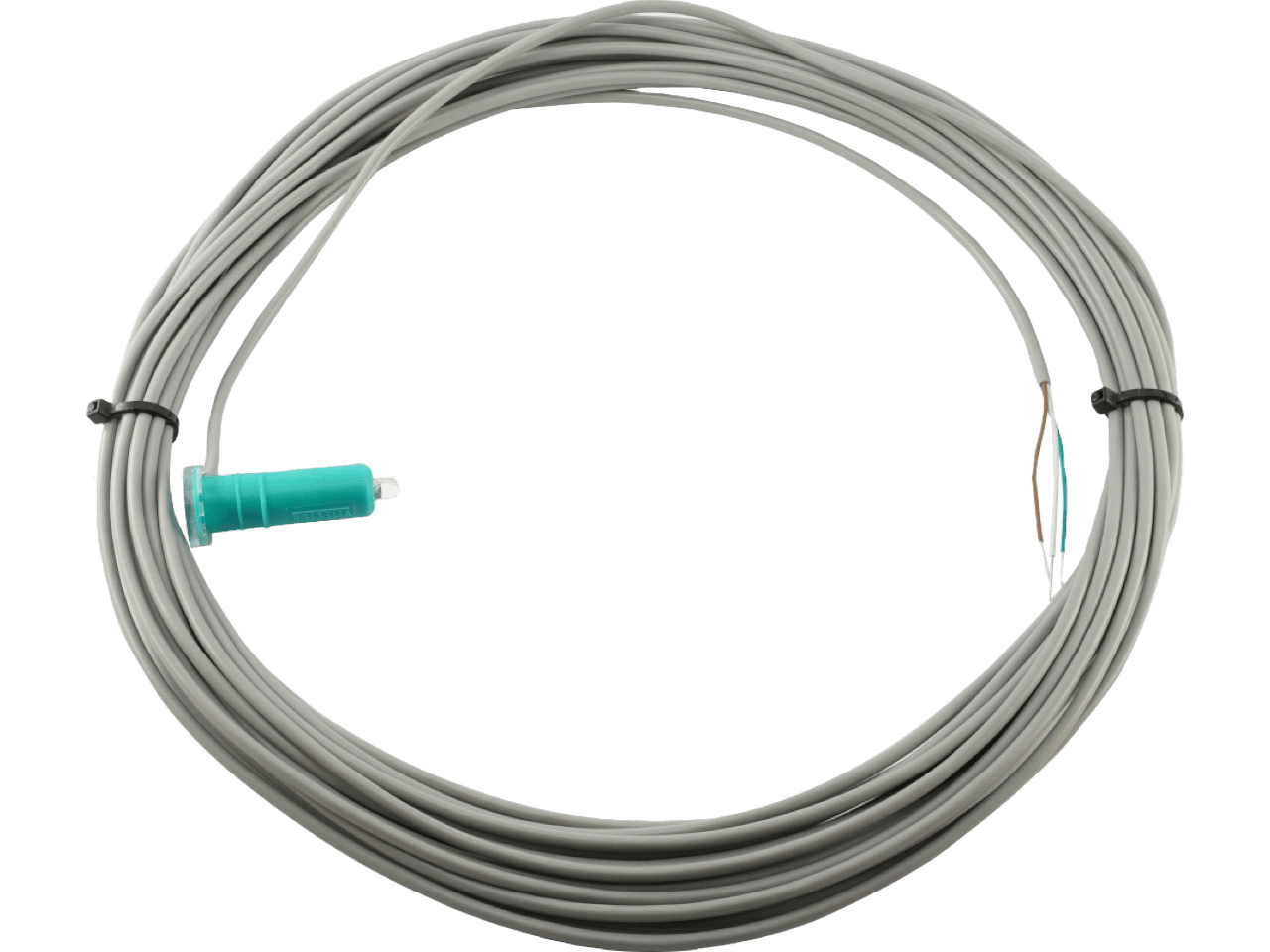

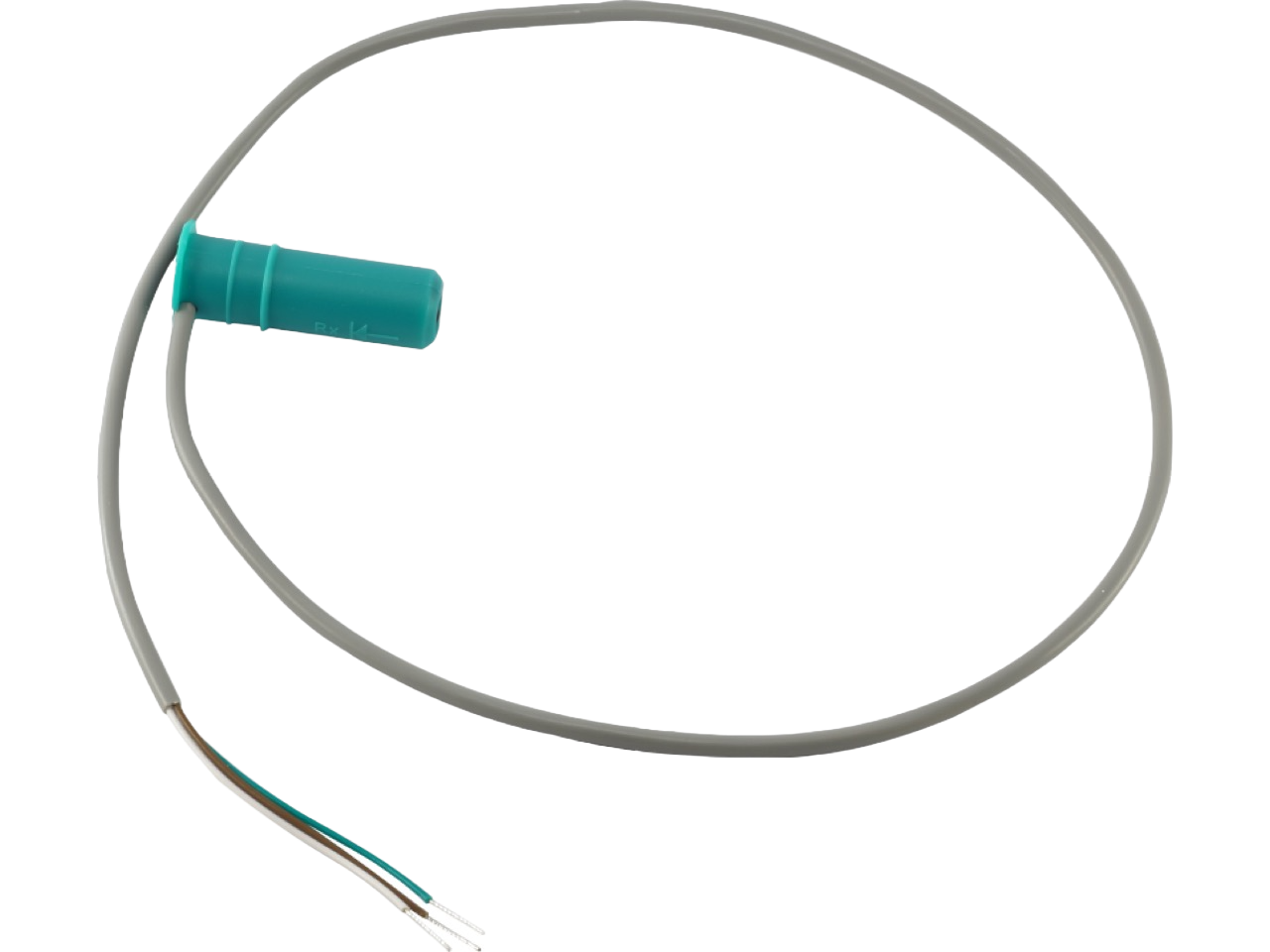

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, with Diagnose-LED, PVC-cable, cable length 10,5m/0,5m, without plugs
Description:
The FRABA VITECTOR OSE-S 6702 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 10.5 m and receiver - 0.5 m). Through an LED at the back of the transmitter, the operating status of the sensing edge is always clearly visible. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.
Warning:
The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.
| Additional Functions: | geeignet für Batteriesysteme, Status LED |
|---|---|
| Cable Length: | 10.5 / 0.5 m |
| Connection Type: | Cable, w/o plug |
| Diameter: | 11 mm |
| Max. Operating Temperature: | +75 °C |
| Min. Operating Temperature: | -20 °C |
| Output: | OSE |
| Protection Class: | IP 68 |
| Range: | 10 m |
| Supply Voltage: | DC 4-28 V |
