ASO Safety Edge Set Sentir Edge 35.55 CT 1,5m
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Other customers also bought
in stock
Sensing Egde Set Type ASO Safety SENTIR Edge 35.55 CT, Set includes rubber profile and all accessories needed to build a safety edge with a length of 1,5m as end or serial edge, cable length 2,5m, includes aluminium c-profile, assembly without the use of glue or additional assembly materials
Description:
The Plug’N’Sense System allows easy assembly of the SENTIR Edge 35.55 CT contact edges by ASO Safety. No additional adhesive or other assembly material is needed. The safety edges can be assembled on site, allowing for tailor made solutions according to the local conditions. The safety edge sets contain all the necessary materials to produce end and serial edges. As a terminating resistor the end plugs are equipped with an 8k2 ohm resistor, which can be monitored by many of the commercially available gate and door controls.
The safety edge set includes:

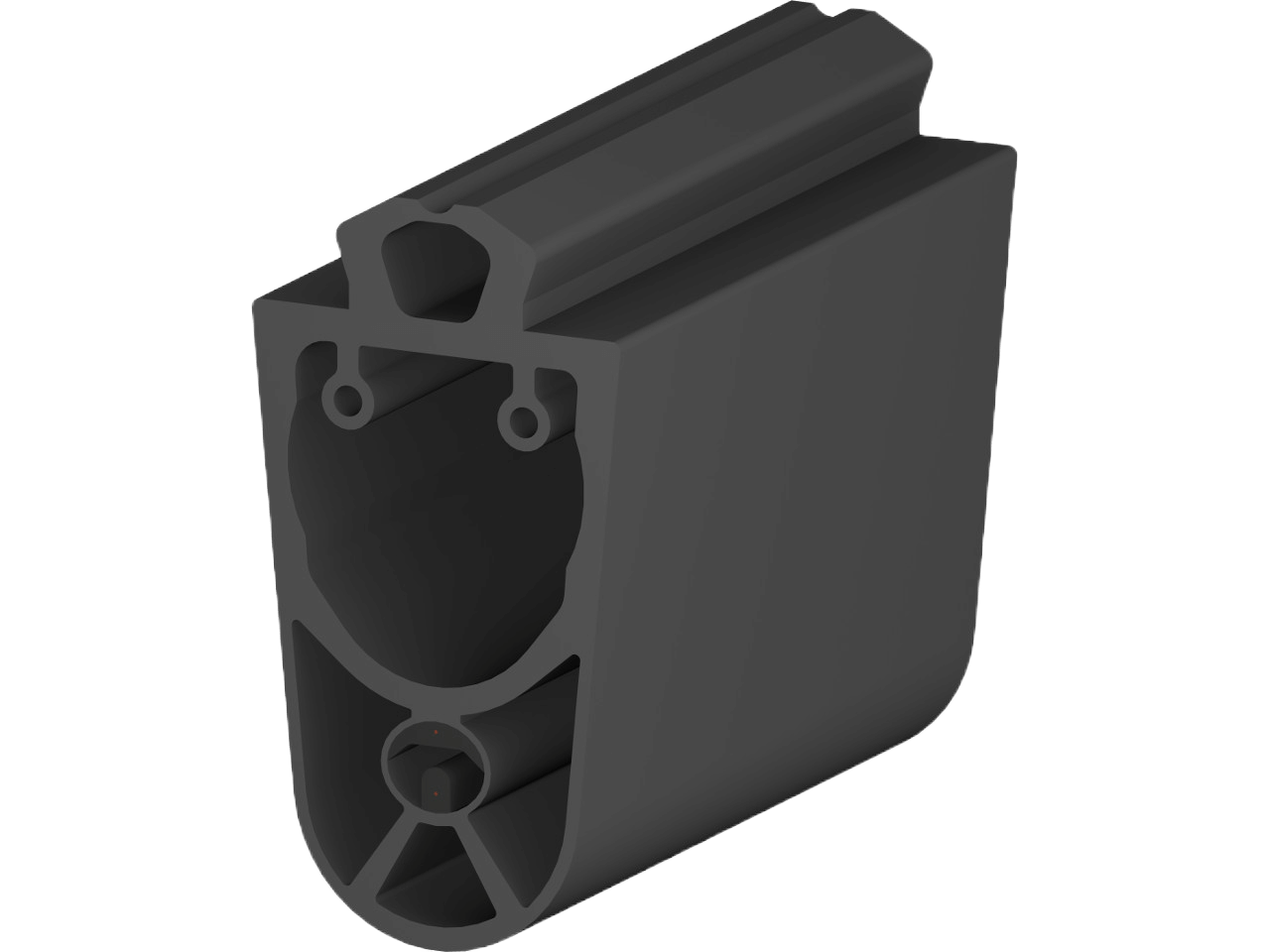

- 1,5m contact profile SENTIR Edge 35.55 CT, width 35mm, height 55mm
- 2 x 0,75m aluminium profile AL 35-14, width 35mm, height 14mm
- 2 x lock cap
- 1 x resistor plug 8.2 kOhm
- 2 x connector with cable 2,5m
- 2 x end cap 35.55
- 4 x fixation clips
On request, we also deliver pre-assembled safety edges according to your desired length. Please send us your requirements and we will make an individual offer.
| Cable Length: | 2.5 m |
|---|---|
| Hight Rubber Profile: | 55 mm |
| Material: | TPE |
| Max. Operating Temperature: | +50 °C |
| Min. Operating Temperature: | -10 °C |
| Profile Foot: | Clip Foot |
| Protection Class: | IP 65 |
| Sealing Lip: | without lid |
| Width Rubber Profile: | 35 mm |
